Metal Butterfly Valve

Ball Valve - SH
  • Standard: API 609、ASME B16.34、AWWA C504、ISO 5208、ISO 5211、ISO 5752
  • Size: 1.5” - 48”
  • Face To Face: ISO 5752 TABLE 5 SHORT
  • Flange connections: ANSI 125/150、JIS 10K、DIN PN10/16
  • Woking pressure: Maximum 16 bar
  • Temp range: -20ºC - 204ºC
  • Marking: DIN EN 19
  • Design of connections: Wafer,lug and flange type
  • Material: Cast iron, ductile iron, stainless steel, duples stainless steel
  • Manufacturer: Value Valve


  • Narrow tolerances - Precision-machined bodies form the basis for perfect seating of the liner and precise positioning of the shaft.
  • Shaft retainer - The shaft retainer guarantees blow-out resistance of the shaft.
  • Multiple bearings - The shafts have multiple bearings. Optimal guidance even after many years of use. No contact corrosion.
  • Continuous forming lobe - The continuous forming lobe fits perfectly in the relevant groove of the body, stabilising the liner.
  • Polished sealing surfaces - The sealing surfaces are mirror polished and guarantee low torque combined with tightness
  • Double-sided profiles ensure the sleeve-body engagement in the outer body recess.

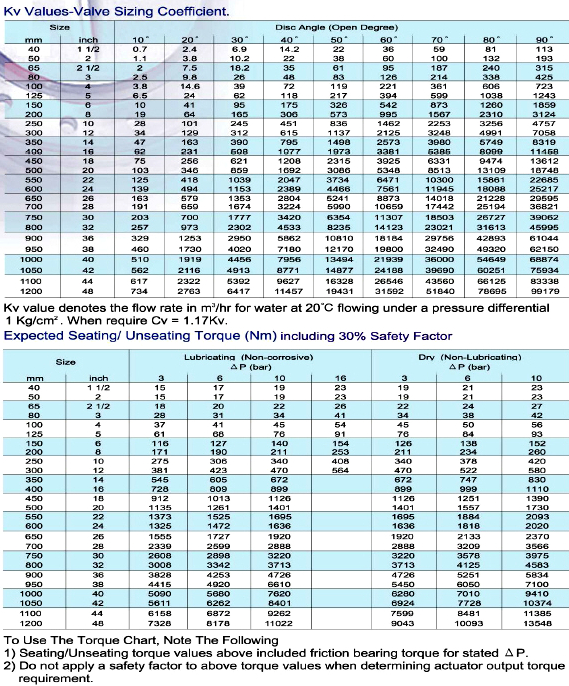

Ball Valve Specification


  • Water Treatment
  • Shipbuilding
  • Air condition
