PVC Valves

PVC Ball Valves : Sanking

Ball Valve - SH
  • Standard: ANSI, DIN, JIS, CNS
  • Material: PVC, CPVC, Clear PVC, PP, PVDF
  • Size: 1/2'' - 4''; 20mm - 110mm; DN15 - DN100
  • Operating temperature:Joint End: Socket, Threaded(NPT, PT, BSPF), Fusion, Welding
  • Working pressure: 150 PSI
  • Handle colour : red, blue, green, orange
  • Valve body colour : PVC(dark gray), CPVC(light gray), PP(light yellow)
  • Manufacturer: Sanking

Advantages

  • USA NSF approved & materials meet drinking water standard
  • Smooth opening & closing thanks to a lower torque
  • 100% pure virgin material, CaCO3 free (Chalk)
  • UV resistant powder added
  • 100% pressure testing before leaving the factory
  • Can be assembled with Pneumatic/Electtric Actuators

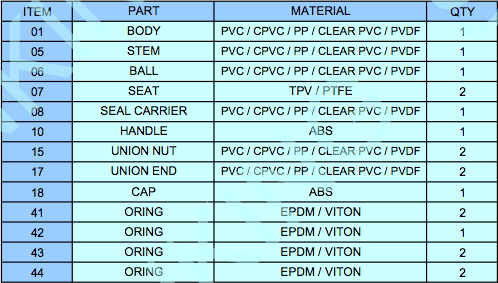

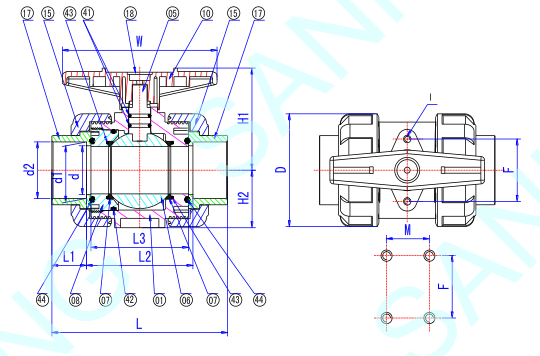

Specification

Ball Valve Specification Ball Valve Specification Ball Valve Specification

Applications

  • Oil
  • Chemical processes
  • Electronics
  • Gold
  • Papermaking
  • Processed foods and beverages
  • Pharmaceutical operations
  • Industrial plating
  • Seawater treatments
  • Hot spring water distribution
