PVC Valves

Butterfly Valve

Ball Valve - SH
  • Standard: JIS, ANSI, DIN
  • Body material: UPVC, PP, CPVC, PVDF
  • Size: DN50(2") - DN200(8")
  • Operating temperature: 0 - 55ºC
  • Body colour: grey, transparent with slight purple tint
  • Manufacturer: Sanking

Advantages

  • Corrosion resistance.
  • Excellent flow characteristic.
  • Compact and lightweight designs in an energy-saving and cost-efficient butterfly valve.
  • With clear indication of disc opening degree.
  • Ideally suited for flow control in a minimum piping space.

Specification

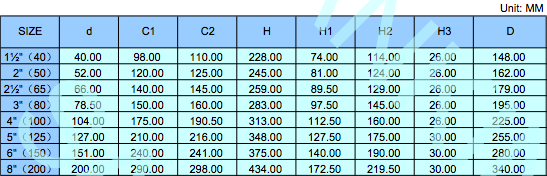

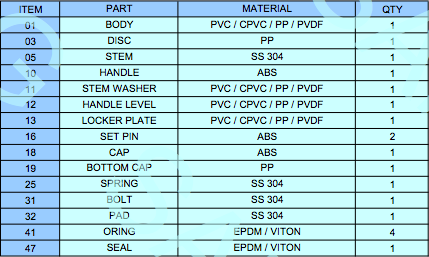

Ball Valve Specification Ball Valve Specification Ball Valve Specification

Applications

  • Oil
  • Chemical processes
  • Electronics
  • Gold
  • Papermaking
  • Processed foods and beverages
  • Pharmaceutical operations
  • Industrial plating
  • Seawater treatments
  • Hot spring water distribution
