PVC Valves

Pressure Relief Valve

Ball Valve - SH
  • Model: DHV716
  • Standard: ASTM SCH80
  • Material: Meet drinking water standard
  • Size: DN10 - DN50
  • Set range: 0.3 - 10.0 bar
  • Nominal pressure: PN 10r
  • Operating temperature: PVC-U 0 - 55º C
  • Valve body: PVC-U, PP, PVDF, PTFE -Carbon fibre reinforced, stainless steel 1.4571 (V4a)
  • Colour: PVC-U, grey, RAL 7011, opaque, yellowish-white
  • Brands: ASV Stübbe

Advantage

  • Pressure setting possible at any time, also during operation.
  • Optimum monitoring valves
  • High level of operating safety and long service life
  • High reproducibility of the set pressure
  • Constant, low vibration control
  • Low maintenance
  • Radial removal is possible even after installation
  • Low pressure increase until the valve is fully opened
  • Considerably shortened face-to-face dimension with injection moulded threaded neck according to DIN 8063

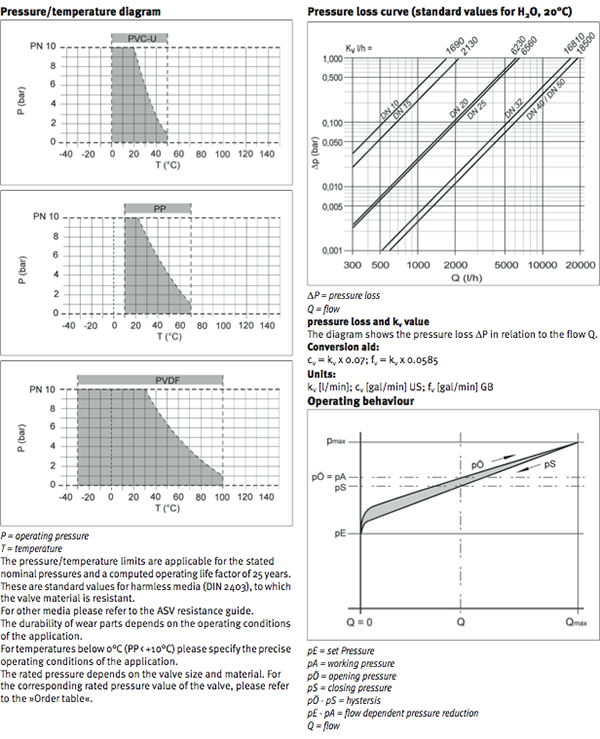

Specification

Ball Valve Specification

Application

  • Chemical plant
  • Industrial plants
  • Water treatment
